LED-online moisture measurement

LED-online moisture measurement
-

NIR-H2O-Meter

Unique LED- online moisture measurement

  • state of the art NIR-LED technology
  • no mechanically moved parts
  • specially designed for measuring of bulk material
  • the measured surface can be smooth, planar or bulk material
  • Colour has no influence on the measured signal
  • no maintanance
  • easy to use calibration software

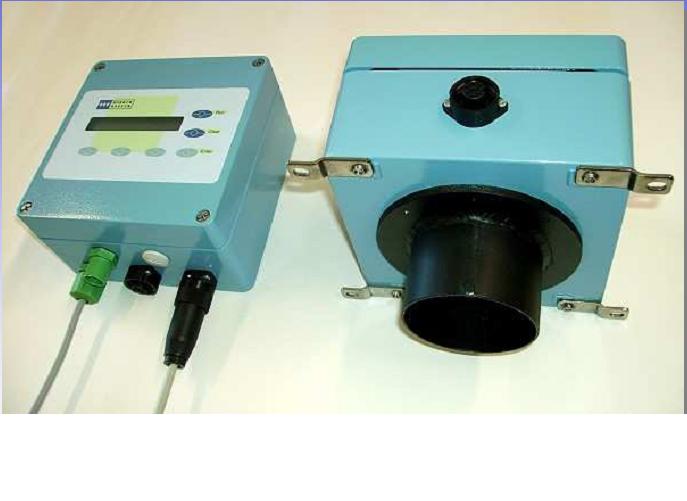

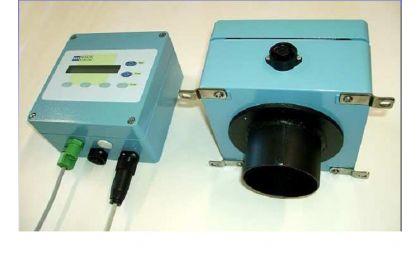

The product is a device for continuous NIR reflection measurement with infrared LED's. The NIR-H2O-Meter is a modular unit, evaluation and sensor system are mounted in different housings. The distance between sensor system and product can be up to 50 meters.

The measured value of the H2O content is available as digital (RS232, optional RS485) and analogue value (0/4-20mA).

Advantages:
In contrast to conventional IR or NIR systems from other suppliers, the product does not work with colour filters or halogen lamps, and offered therefore improved stability of the measurement. The lifetime is up to 10 years. The drift of the measurement value, as is the case with other IR / NIR instruments, has been fully compensated. Colour variations of the product has no influence in the measuring result. Also uneven surfaces of the product, such as coarse bulk materials, can be measured. The measurement has a very high reliability and very low maintenance costs.

Measurement Design:
The sensor system is located over the detected product surface. The products (e.g. paper webs, width of material and any kind of bulk material) are moving on a conveyor belt under the sensor system.


Applications:
all kind of bulk material

  • Plastics industry
  • Primary industry
  • Construction industry
  • Tobacco indutry
  • Sugar industry
  • Cement
  • Gravel
  • Coal
  • Granitic sand
  • Clay
  • Plastic granulate

Calibration:
The calibration of the measurement is done with our easy to use our software.

Software-Versions:
Standard with 1 calibration
Standard with 8 switchable calibrations


Technical data:
Housing:
   Size LxWxH
   Enclosure
   Color
pressure cast aluminium housing
180 x 180 x 100mm
IP65 / NEMA 4
RAL 5024
Connections
   Power supply
   4 analog outputs
   PC interfaces
   PROFI-BUS-DP
   Sensor


100-240V AC, optional 24V DC
0/4 - 20 mA
RS 232 oder RS 485
optional
LED-Illumination

User interface
   Operating
   Display

6 integrated soft keys in keypad
2 x 24 characters illuminated
Ambient conditions
   Environment temperature
   Product temperature

-20°C to +50°C
-20°C to +70°C
